4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout

1
MOQ
16,500$- 26,000$
τιμή
4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Επισημαίνω:

4 axis CNC bridge saw cutter

,

stone granite marble cutting machine

,

quartz kitchen countertop slab cutter
Βασικές πληροφορίες
Τόπος καταγωγής: Τζίντζιανγκ, Φουτζιάν, Κίνα
Μάρκα: Xianda
Πιστοποίηση: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Αριθμό μοντέλου: επεκτείνουν
Πληρωμής & Αποστολής Όροι
Χρόνος παράδοσης: 45 ημέρες
Όροι πληρωμής: Τ/Τ, L/C, D/P, D/A
Δυνατότητα προσφοράς: 1000 σετ/έτος
Περιγραφή προϊόντων

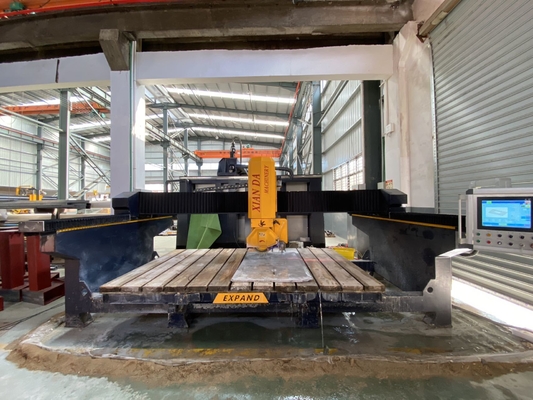

4 Axis CNC Bridge Saw Cutter Machine

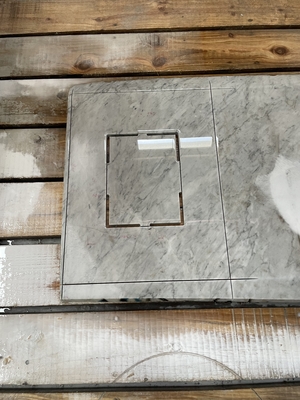

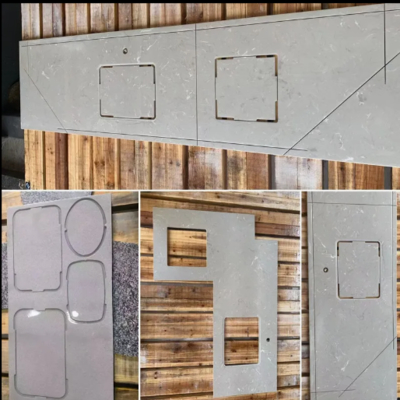

Professional cutting, milling, and drilling machine for processing stone, granite, marble, quartz, kitchen countertops, slabs, tiles, and sink cutouts.
Basic Specifications
  • Model No.: Expand 450
  • Type: Bridge Cutting Machine
  • Usage: Granite, Marble, Sintered Stone
  • Application: Construction, Stone Industry
  • Source Voltage: 380V
  • Automation: Automatic
  • Control: CNC
  • Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 0
Key Features

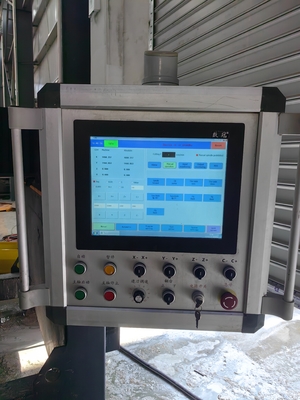

  • Microcomputer system for easy operation
  • Integrated structure for simple installation
  • CNC gantry milling processed frame for stability
  • High-precision linear guide sliders and ball screws
  • High-end servo system for improved accuracy
  • Reduced failure rate and increased production efficiency
  • Ideal for high-value, precision large-scale plate processing
Technical Parameters
Parameter Unit EXPAND 450 ZDCM-400-B ZDCM-400-C
Control System Type / 4 Axis CNC PLC CNC
Blade Diameter mm φ350-φ450 φ300-φ400 φ300-φ400
Worktable Size mm 3200*2000 3200*2000 3200*2000
Max Processing Size mm 3200*2000*100 3200*2000*80 3200*2000*80
Worktable Tilting Angle ° 0°-85° 0°-85° 0°-85°
Cutting Head Rotation Degree ° 0°-360° 0°-360° 0°-360°
Cutting Head Chamfer Rotating Degree ° 0°-45° 0°-45° 0°-45°
Main Motor Power kw 15 15 15
Water Consumption m³/h 3 3 3
Outline Dimension mm 5000*3100*2700 5300*3100*2600 5300*3100*2600
Related Products
4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 1 4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 2 4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 3 4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 4 4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 5 4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 6
Company Overview
4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 7
Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985. Our 20,000m³ facility is located in Jinjiang Wuli Industrial area, near the historic Wuli Bridge and the world's largest stone market in Shuitou.
With over 34 years of experience, we specialize in developing diamond wire saw machines, column processing machines, bridge cutting machines, and other stone processing equipment. Our column processing machines hold approximately 80% of the Chinese market share, with customers in over 30 countries worldwide.
We maintain "Top Technology and Superior Quality" as our standard, holding CE and ISO certifications. Our company has received numerous awards including "China Recommend Building Manufacture Enterprise" and "3A Enterprise Credit Evaluation."
Certifications
4 Axis CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout 8
Our Service
  • Machine testing videos available before purchase
  • Rigorous inspection and testing before shipping
  • 24-hour online after-sales service
  • Professional staff training programs
  • Technical personnel available for installation guidance and operator training
Frequently Asked Questions
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment. After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes, we are the stone machinery factory for over 30 years.
